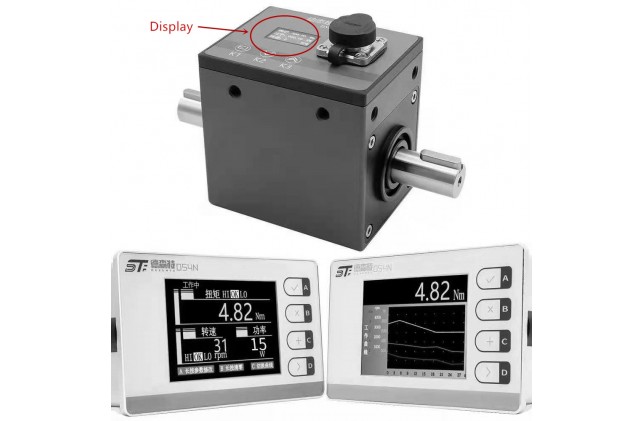

Non-contact Shaft to Shaft Rotary Torque Sensor with Build-in Display to Show Torque, Speed and Power (BTQ-408RTS2)

Specifications  Technique
Capacity/Range 0-0.1,0.2,0.3,0.5,1,2,3,5 Nm, 10,20,30,50,100,200,300 Nm
500, 600, 800Nm, 1000, 2000, 5000Nm
10000, 20000Nm
Torque output 4-20mA, 0-20mA, 0-5V, 0-10V, 14bit accuracy
Non-linearity ±0.1%
Hysteresis 0.03%F.S
Repeatability 0.03%F.S.
Temp.effect on output 0.01%F.S./℃
Temp.effect on zero 0.01%F.S./℃
Speed output 120/60/10 pulses/revolution
Rated speed 10000rpm
Response performance 1kHz
Max rotation speed 15000rpm
Load resistance 2kΩ or more
Power input 24VDC
Current consumption Less than 150mA
Maximum torsion angle 2.60x10rad(0.149°)
Signal delay 0.6ms (50% response)
Allow overload 200%FS
Vibration natural frequency (rotor part) 19.4kHz
Operating temperature -10~+ 50℃
Torque constant 3.85x10Nm/rad

Product Description

  1. Name: Shaft rotary torque force sensor with display (BTQ-408RTS2)

  2. Type: BTQ-408RTS2 series

  3. Capacity: 0.1,0.2, 0.5,1,2,3,5 Nm, 10,20,30,50,100,200,300 Nm, 500, 600, 800Nm, 1000, 2000, 5000Nm, 10000, 20000Nm

  4. Material: Stainless steel or Alloy Steel

  5. Features:

 Made of Stainless Steel/Alloy Steel,Strong stability

Various range of capacity from mini-capacity to big capacity

Build-in Display to Show Torque, Speed and Power

Easily integrates into OEM applications

Shaft to shaft rotary type

Designed for Torque auditing

Uses strain gauge technology

Rotary torque measurements mainly used for packing scales,hopper scale and industrial measuring system

6. datasheet: ask the supplier to get more

Specifications  Technique
Capacity/Range 0-0.1,0.2,0.3,0.5,1,2,3,5 Nm, 10,20,30,50,100,200,300 Nm
500, 600, 800Nm, 1000, 2000, 5000Nm
10000, 20000Nm
Torque output 4-20mA, 0-20mA, 0-5V, 0-10V, 14bit accuracy
Non-linearity ±0.1%
Hysteresis 0.03%F.S
Repeatability 0.03%F.S.
Temp.effect on output 0.01%F.S./℃
Temp.effect on zero 0.01%F.S./℃
Speed output 120/60/10 pulses/revolution
Rated speed 10000rpm
Response performance 1kHz
Max rotation speed 15000rpm
Load resistance 2kΩ or more
Power input 24VDC
Current consumption Less than 150mA
Maximum torsion angle 2.60x10rad(0.149°)
Signal delay 0.6ms (50% response)
Allow overload 200%FS
Vibration natural frequency (rotor part) 19.4kHz
Operating temperature -10~+ 50℃
Torque constant 3.85x10Nm/rad
