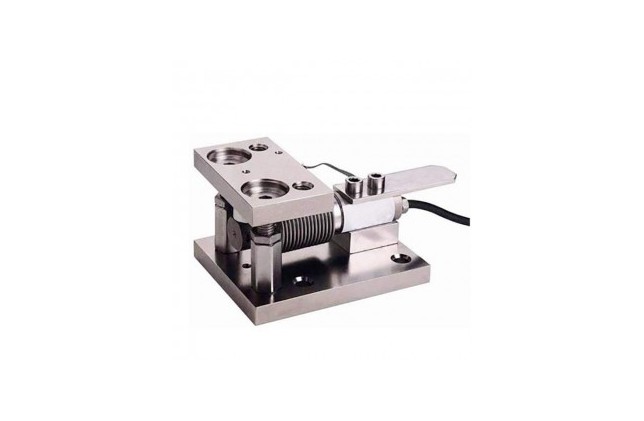

Tank weighing module for beam load cells

Product Description



BRANS supplies the Compression weighing module for max. capacities from 50 kg to 200 kg and 500 kg. The weigh module is designed mainly for use in tank weighing applications.

This weighing module is fitted with lateral stay rods
An integral over-load stop is also fitted. The modules consist of a base plate, the load cell complete with load application elements, and the cover plate. A pendulum support is used for the load application, providing compensation for horizontal load shifts (such as may occur as a result of thermal strain, for example). The weighing module is pre-assembled and a grounding cable is supplied.



Nominal load

50 kg / 100 kg / 200 kg / 500 kg





Key Features

  • Equipped with the bellow beam load cells

  • With overload stop and Transverse stay rod

  • Maintenance-free

  • Compact installation at minimum height

  • Easy installation

  • Two versions available: Galvanized material or Stainless steel

  • Self-restoring due to pendle bearing

  • With lift-off device and lifting device





weighing module.png
