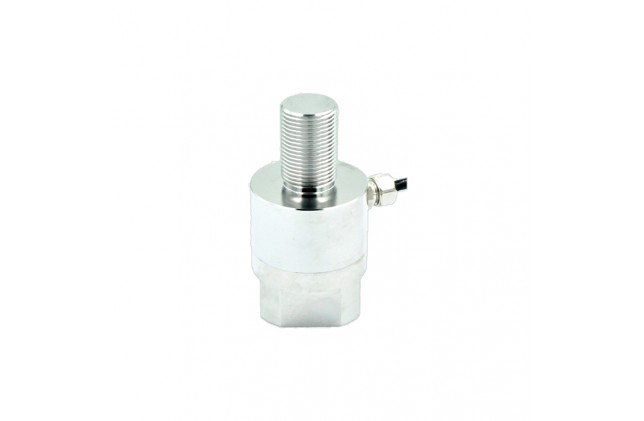

Stainless Steel Single-ended Threaded Rod Tension and Compression Force Sensor TCF-740

DOWN LOAD
INQUIRE

Product Description

Features & Applications:

  1.    Single-end thread rod in-line type tension and compression force sensor

  2.    Made of stainless steel or alloy steel

  3.    Maximum capacities loads 1kN... 10kN

  4.    Compact structure with high dynamic response frequency.

  5.    Different cable lengths, dimensions, capacities,accessories and other options available

  6.    Mainly used for automotive press fit,automated assembly,3C product testing, new energy product assembly, medical testing,robotics,mold assembly and other industrial testing and control

system



Specifications:

Specifications

Technique

Capacity

1,2,3,5,10kN

Rated output

1.5±20%mV/V

Zero balance

±0.03mV/V

Non-linearity

0.1%F.S.

Hysteresis

0.1%F.S.

Repeatability

0.1%F.S.

Creep(30min)

0.05%F.S.

Temp.effect on output

0.05%F.S./10℃

Temp.effect on zero

0.05%F.S./10℃

Input impedance

780±20Ω

Output impedance

700±10Ω

Insulation

≥5000MΩ/100VDC

Recommended excitation

5~15V

Maximum excitation

15V

Compensated temp range

-10~60℃

Operation temp range

-20~80℃

Safe overload

150%F.S.

Ultimate overload

200%F.S.

Material

Stainless Steel

IP Class

IP67
