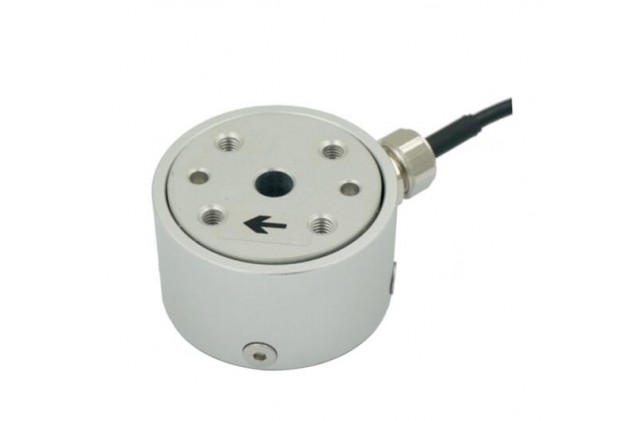

Flange to Flange Reaction Torque Sensor(BTQ-903B)

Specifications

Technique

Capacity

1,2,3,5,6,10, 20,30,50,100N.m

Rated output

1.5±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.1%F.S.

Hysteresis

0.1%F.S.

Repeatability

0.05%F.S.

Creep(30min)

0.1%F.S.

Temp.effect on output

0.05%F.S./10

Temp.effect on zero

0.05%F.S./10

Input impedance

410±20Ω

Output impedance

350±10Ω

Insulation

≥5000MΩ/100VDC

Recommended excitation

5~15V

Maximum excitation

20V

Compensated temp range

-10~60

Operation temp range

-20~80

Safe overload

120%F.S.

Ultimate overload

150%F.S.

Cable size

φ3×4000mm

Material

aluminum alloy

Weight approx.

0.2kg

IP Class

IP65

Product Description

1.       Product Name:Flange to Flange Reaction Torque Sensor(B903)

2.       Material: Aluminum Alloy

3.       Capacity: 1,2,3,5,6,10, 20,30,50,100N.m

4.       Features:

           Easily integrates into OEM applications

           Designed for Torque auditing

           Flange to flange design, easy to install

           Aluminum construction

           Strain gauge based

   6. Datasheet



Specifications

Technique

Capacity

1,2,3,5,6,10, 20,30,50,100N.m

Rated output

1.5±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.1%F.S.

Hysteresis

0.1%F.S.

Repeatability

0.05%F.S.

Creep(30min)

0.1%F.S.

Temp.effect on output

0.05%F.S./10

Temp.effect on zero

0.05%F.S./10

Input impedance

410±20Ω

Output impedance

350±10Ω

Insulation

≥5000MΩ/100VDC

Recommended excitation

5~15V

Maximum excitation

20V

Compensated temp range

-10~60

Operation temp range

-20~80

Safe overload

120%F.S.

Ultimate overload

150%F.S.

Cable size

φ3×4000mm

Material

aluminum alloy

Weight approx.

0.2kg

IP Class

IP65






























































5.    Description:

   The B903B Flange to Flange Reaction Torque Sensor can accommodate applications that include automotive braking, engine and transmission dynamometers, torque table, fastener testing, aircraft engine testing, and marine shaft torque measurements with shaft horsepower monitors. The B903 is available in both, aluminum and stainless steel construction and offers a unique solution for torque auditing applications. This particular Reaction Torque Sensor can be used to evaluate low-torque components and controls. Flange-reaction torque sensors measure small-reaction torque levels using flange-to-flange connections in-line with the component under test.



Need something special or a completely customized design? Contact BRANS to discuss your particular application requirements.
